These are fixed, fictional input/output examples, not live readings or measured performance. This page does not use a camera, accept uploads, or run AI processing.

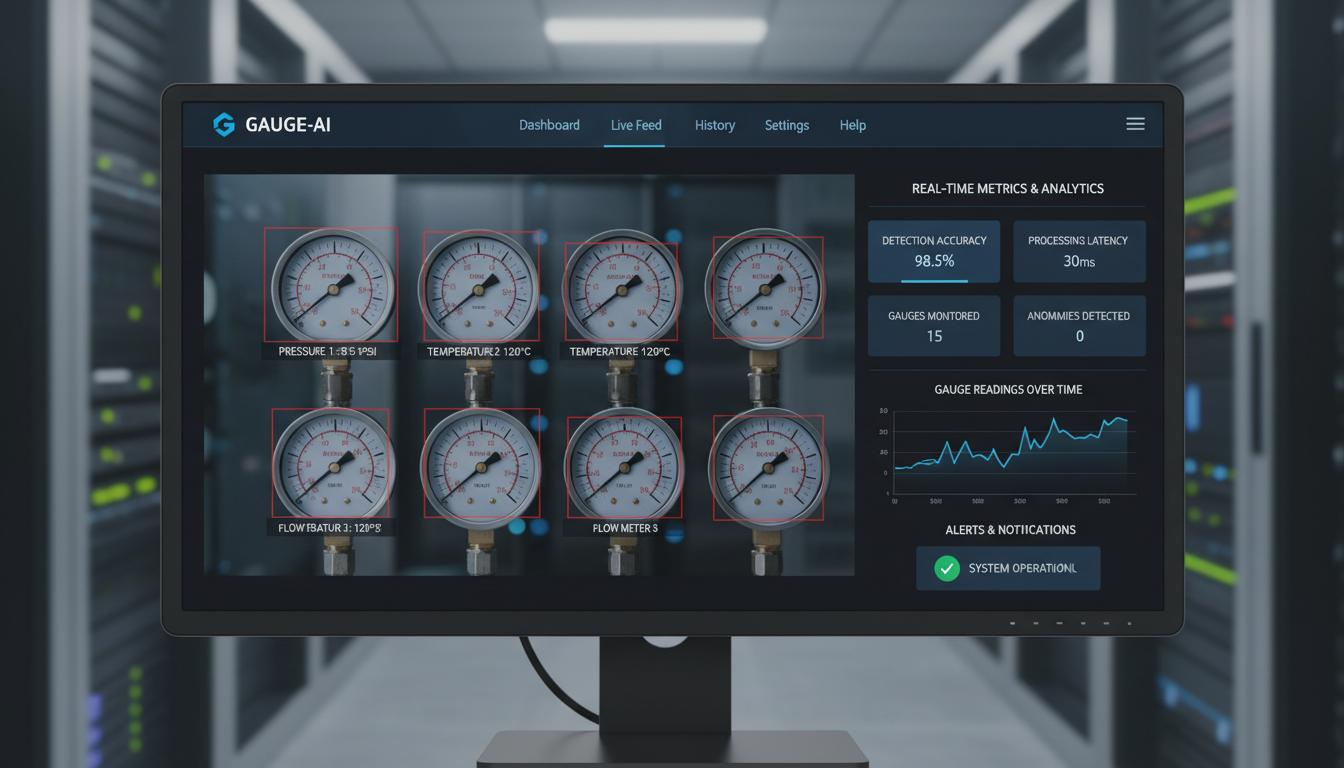

Conceptual illustration, not a product screenshot or measured result.
Each selection shows the same predefined result every time. Values and quality labels explain the example only; they do not demonstrate accuracy, speed, or uptime.
Fixed illustrative example — not a measurement
Fixed illustrative example — not a measurement
Fixed illustrative example — not a measurement
Choose an SI partner to discuss a demonstration with your instruments. Confirm scope, availability and performance evidence for the specific project.
Contact an SI partnerThis page uses predefined inputs and answers. It does not open a camera, accept your images or run AI. Selecting the same scenario returns the same result. The purpose is to explain values, units, quality states and review actions, not merely display a number.
A value must agree with the actual instrument scale. Identical needle angles on different ranges or directions can represent different readings. A clear needle does not establish instrument accuracy; separate image interpretation from physical measurement error.
Example quality and error labels are predefined explanations, not measured accuracy, speed or product performance. This simulation cannot replace a pilot with actual conditions and reproducible reference answers.
Zero is a genuine possible reading after shutdown. An unreadable image should have a state and reason, not a substituted zero. Otherwise users cannot distinguish an actual process value from insufficient evidence.
A previous value may remain useful as history but must retain its time and stale status. Reflections and occlusions call for imaging checks, not forced guesses to ensure a result on every frame.
Use these examples to ask an SI partner how the receiver handles each state, who reviews evidence and what delivery timing is required. Control and safety responsibilities need separate engineering, not conclusions from simulated outputs.
Read published articles on principles, limitations and system evaluation.
