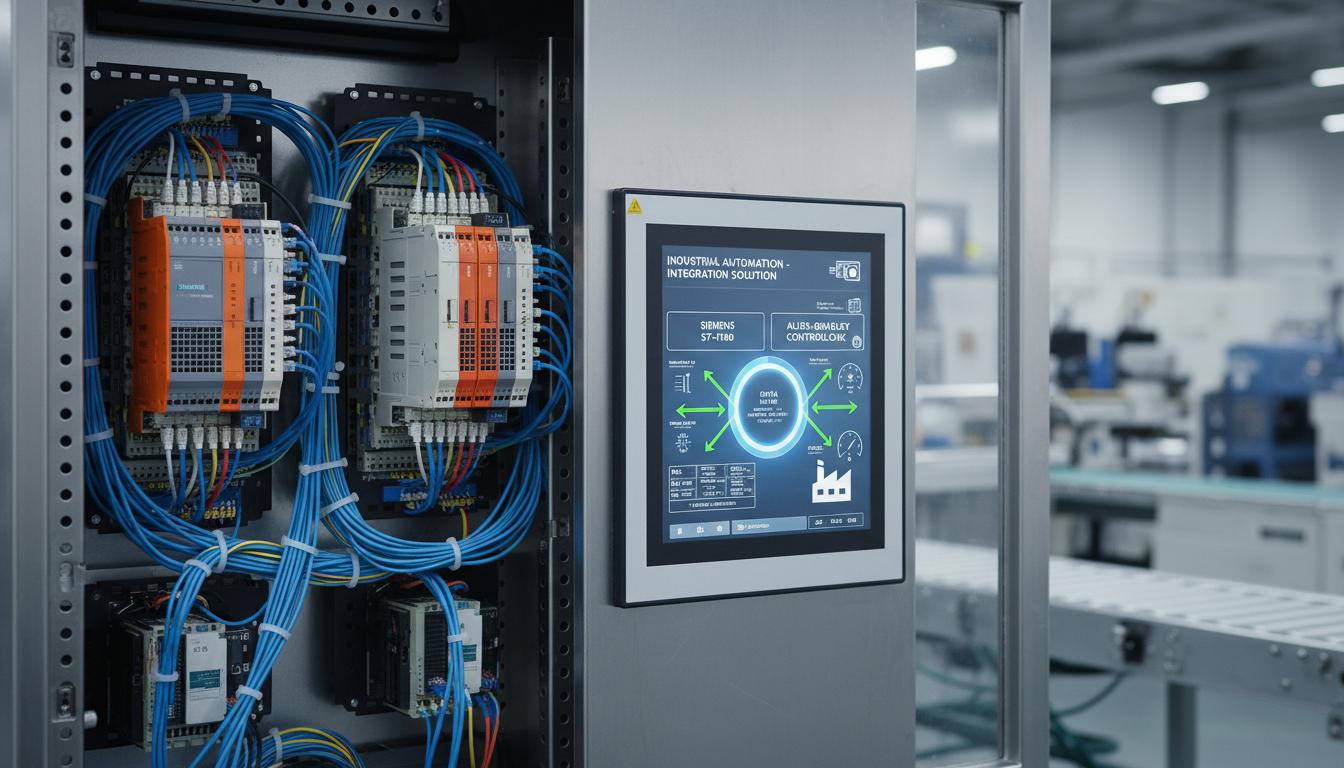

PLC Integration Solutions

Principles, Scenarios and Suitability

PLCs execute scan cycles and control logic with predictable timing requirements. Vision integration should separate data-reading channels from command channels and define a handshake so a result for one part cannot be applied to the next part.

A PLC reads signals, evaluates logic and updates outputs in scan cycles. Vision uses images that may arrive late or be unreadable. A handshake requests, returns and confirms a result for the same job, like returning an answer with its queue ticket. A pass value already in a register may belong to a previous part; check its identifier and validity.

Define result lifetime and ownership of each state. Waiting longer can reduce held work but exceed machine timing; shorter timeouts improve predictability but increase unknown results. Machine engineers must choose for the risk and part route, not average model speed. Proposed commands need separate assessment and do not constitute a protection circuit.

Illustrative Design Scenario

Illustrative design scenario: a PLC sends a trigger with a part identifier. The vision system returns the same identifier and a valid flag. A timeout or identifier mismatch enters a state designed by the machine engineer; silence is not interpreted as a pass.

Suppose the machine requests job 101 but receives an old result for 100. It must not apply that answer to the new job even if it says pass and arrives within the time window. Record the mismatch in testing and follow the agreed sequence. Neither stopping nor releasing a part is a universal timeout response.

A holding station needs space and part tracking; waiting before transfer may reduce line speed. Production and machine teams should review those alternatives together. Simulate late, duplicate and reordered results before site trials. Never force moving equipment into incorrect timing merely to create test conditions.

Inputs and Prerequisites

Provide tag/register maps, data types, byte order, scan time, allowed timing windows and safe states defined by the machine team. Use a test PLC or simulator before accessing production equipment.

A register is a device data location; byte order defines how its bytes become a number. Test positive, negative and boundary values. Specify which system writes each location so integration does not conflict with existing machine logic.

Each result should include sequence ID, validity, time and an unreadable reason where applicable. Unknown must not become pass or zero. Retain the handshake contract and program version so maintenance personnel can reproduce checks instead of relying on undocumented assumptions about the register contents.

Trial and Integration Workflow

Evaluation and Acceptance Criteria

Measure end-to-end time and the distribution tail, not inference time alone. Verify that every result is correctly matched and cannot be reused after reconnection. Derive acceptance limits from the actual machine constraints rather than promising timing based on a general example.

End-to-end timing includes trigger receipt, capture, queueing, calculation and return. Test concurrent jobs and restart during acknowledgement. A fast single-job demonstration does not represent the highest workload or delays the machine may encounter.

Machine staff should review every tested job-result pair, including sequence-number rollover and replies arriving after timeout. Require evidence that old results cannot be reused. Merely seeing the screen change state does not prove correct pairing or recovery behaviour.

Failure Cases and Limitations

A gateway or AI model does not make a communication path safety-rated. Writing the wrong register may change machine conditions. PLC program changes require change control and competent personnel; this experiment does not replace a machinery risk assessment.

Read-only integration still adds communication load to older PLCs. Agree polling intervals with the system owner and restrict the required locations. Do not expose or scan every register to discover information without an approved scope.

The appropriate response to lost data depends on the machine and associated hazards. This guide supplies no emergency-stop instruction or control-path certification. Future write permissions require rollback planning and competent review, not merely a successful read connection.

Practical Checklist

• Is every result tied to a verified sequence ID?
• Are old results excluded after a timeout?
• Are writable tags allowlisted and approved?

References and Further Reading

• OPC Foundation — OPC UA specifications
• NIST SP 800-82 Rev. 3 — Guide to OT Security
